Features
- Easily locates underground cables and pipes
- Large mapping display shows the utility’s estimated position, direction and depth
- Omni directional antennas capture complete signal field for greater speed and accuracy
- Target line and guidance arrows quickly identify distortion
- Proximity signal and signal strength help work through difficult locates.
- Trace any frequency from 10 Hz to 35 kHz.
Technical Information
- Active Line Trace Frequencies128 Hz, 1 kHz, 8 kHz and 33 kHz
- Passive Power Trace50 Hz, 60 Hz, <4 kHz Broadband
- Passive Radio Trace4 kHz-15 kHz, 15 kHz-36 kHz
- Sound Frequencies16 Hz, 512 Hz, 640 Hz, 850 Hz, 8 kHz, 16 kHz, 33 kHz
- Power Source4 C-Cell Batteries (Included)
- Battery LifeApproximately 16 Hours
- Weight3.5 lbs (1.6 kg)

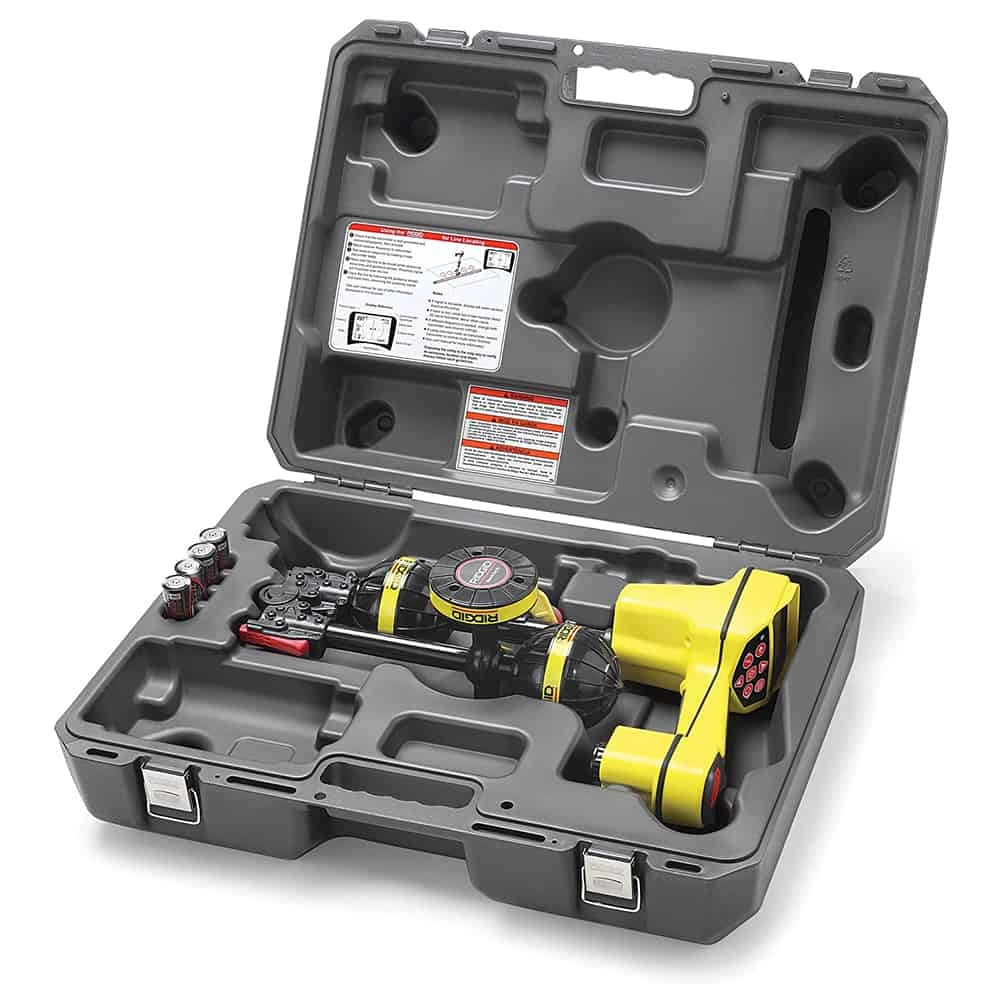

Items Included
- Locator
- Navitrack Mark Chips, Package of 3
- 22173 – SR-20/SR-24 Case
